| SPECIFICATIONS | |
|---|---|
| SIZES | 2" TO 100", LARGE SIZES ALSO AVAILABLE UPON REQUEST |
| CLASS RATINGS | CL 150 TO 600, HIGH PRESSURE CLASSES ALSO AVAILABLE UPON REQUEST |

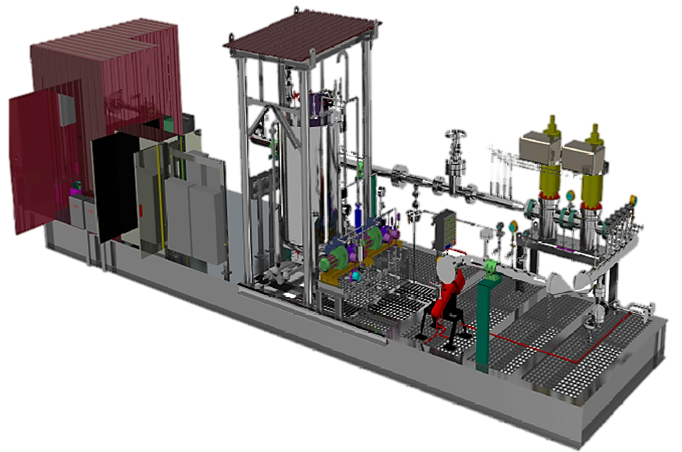

| MAIN EQUIPMENTS | THE MAIN EQUIPMENTS FOR GAS MODULAR SKIDS ARE AS FOLLOWS, 1. CHEMICAL INJECTION SKID 2. WELLHEAD SHUTDOWN ESD & RTU 3. WELLHEAD SHUTDOWN HYDRAULIC PANEL 4. HIPPS (HIGH INTEGRITY PRESSURE PROTECTION SYSTEM) 5. INSTRUMENTS 6. CHOKE VALVES 7. ELECTRICAL & POWER DISTRIBUTION SYSTEMS |
| APPLICATION | GAS MODULAR SKIDS FINDS APPLICATION IN THE FOLLOWING APPLICATIONS. 1. PUMP SYSTEM 2. LUBRICATION SYSTEM 3. CHEMICAL PROCESSING 4. CIP SYSTEMS 5. DEMONSTRATION PLANTS 6. FMCG INDUSTRIES 7. MIXING SYSTEMS 8. PETROLEUM PROCESSING 9. PILOT PLANTS 10. WASTEWATER TREATMENT SYSTEMS. 11. BATCH PROCESSING SKIDS |
| FEATURES AND BENEFITS | THE FOLLOWING ARE SOME ADVANTAGES OF GAS MODULAR SKID. 1. EASY TRANPORTABILITY 2. MINIMAL SITE WORK 3. PLUG & PAY 4. PRE-DEFINED SKID LAYOUT |
| STANDARD | REFERENCE |
|---|---|
| DESIGN & MANUFACTURING | ASME B16.34, ASME BPVC SECTION VIII & IX, ASME B16.42/ API 5L M-CR-630 MANUFACTURING STANDARD |
| FACE TO FACE | MANUFACTURING STANDARD |
| END CONNECTION | ASME B16.5, ASME B16.47 SERIES A & B, EN 10092-1, NORSOK U-001 |
| TESTING | API 598, EN 12266 - 1 & 2, BS 6755 PART-1, ISO 5208, EN 10204, ASME B16.34, AS PER CUSTOMER STANDARDS / SPECIFICATIONS |
| NACE COMPLIANCE | NACE MR 0175 / ISO 15156, NACE MR 0103 |
| PT RATING | ASME B16.34, MANUFACTURING STANDARD |
| MATERIAL OF CONSTRUCTION | |
|---|---|
| VALVES / STRUCTURES | CARBON STEEL (CS), LOW TEMPERATURE CARBON STEEL (LTCS), OTHER MATERIALS ALSO AVAILABLE UPON CUSTOMER REQUIREMENT. |
| PIPINGS | CARBON STEEL (CS), LOW TEMPERATURE CARBON STEEL (LTCS), OTHER MATERIALS ALSO AVAILABLE UPON CUSTOMER REQUIREMENT. |
| SEALING ELEMENT | PTFE, RPTFE, NYLON / METAL, OTHER SPECIAL MATERIALS |
| O-RINGS | VITON, NBR, EPDM, OTHER SPECIAL MATERIALS |
| FASTENERS | ASTM A193 Gr.B7 / A194 Gr.2H, ASTM A193 Gr.B7M / A194 Gr.2HM, ASTM A320 Gr.L7 / A194 Gr.7, ASTM A320 Gr.L7M / A194 Gr.7M, ASTM A193 Gr.B16 / A194 Gr.4, OTHER SPECIAL MATERIALS |
