| SPECIFICATIONS | |
|---|---|
| SIZES | 2" TO 100", LARGE SIZES ALSO AVAILABLE UPON REQUEST |
| CLASS RATINGS | CL 150 TO 600, HIGH PRESSURE CLASSES ALSO AVAILABLE UPON REQUEST |

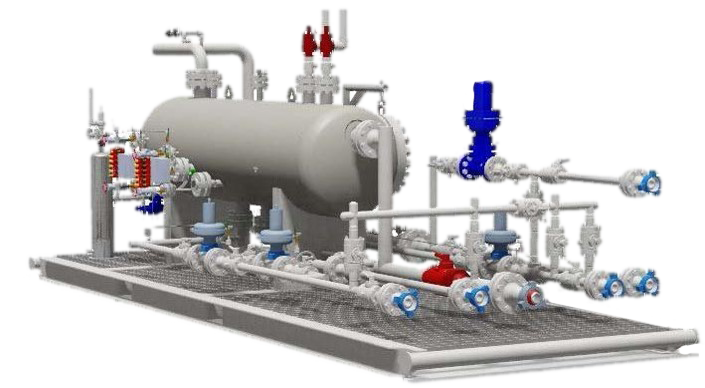

| APPLICATION | PHASE SEPERATOR SKID FINDS APPLICATION IN THE FOLLOWING APPLICATIONS. 1. EXPLORATION WELL TESTING 2. EXTENDED WELL TESTING 3. CLEAN-UPS AND FLOWBACK OPERATIONS 4. MULTIPHASE FLOW METERING 5. GAS PIPELINES 6. GAS FIELD TREATMENTSMETERING & REGULATING STATIONS 7. PETROCHEMICAL PLANTS 8. GAS PROCESSING PLANTS 9. CHEMICAL PROCESSING PLANTS |
| FEATURES AND BENEFITS | THE FOLLOWING ARE SOME ADVANTAGES OF PHASE SEPERATOR SKID. 1. EASY TRANPORTABILITY 2. MINIMAL SITE WORK 3. PLUG & PAY 4. PRE-DEFINED SKID LAYOUT |
| STANDARD | REFERENCE |
|---|---|
| DESIGN & MANUFACTURING | ASME B16.34, ASME BPVC SECTION VIII & IX, ASME B16.42/ API 5L M-CR-630 MANUFACTURING STANDARD |
| FACE TO FACE | MANUFACTURING STANDARD |
| END CONNECTION | ASME B16.5, ASME B16.47 SERIES A & B, EN 10092-1, NORSOK U-001 |
| TESTING | API 598, EN 12266 - 1 & 2, BS 6755 PART-1, ISO 5208, EN 10204, ASME B16.34, AS PER CUSTOMER STANDARDS / SPECIFICATIONS |
| NACE COMPLIANCE | NACE MR 0175 / ISO 15156, NACE MR 0103 |
| PT RATING | ASME B16.34, MANUFACTURING STANDARD |
| MATERIAL OF CONSTRUCTION | |
|---|---|
| VALVES / STRUCTURES | CARBON STEEL (CS), LOW TEMPERATURE CARBON STEEL (LTCS), OTHER MATERIALS ALSO AVAILABLE UPON CUSTOMER REQUIREMENT. |
| PIPINGS | CARBON STEEL (CS), LOW TEMPERATURE CARBON STEEL (LTCS), OTHER MATERIALS ALSO AVAILABLE UPON CUSTOMER REQUIREMENT. |
| SEALING ELEMENT | PTFE, RPTFE, NYLON, OTHER SPECIAL MATERIALS |
| O-RINGS | VITON, NBR, EPDM, OTHER SPECIAL MATERIALS |
| FASTENERS | ASTM A193 Gr.B7 / A194 Gr.2H, ASTM A193 Gr.B7M / A194 Gr.2HM, ASTM A320 Gr.L7 / A194 Gr.7, ASTM A320 Gr.L7M / A194 Gr.7M, ASTM A193 Gr.B16 / A194 Gr.4, OTHER SPECIAL MATERIALS |
